A question that quickly arises when configuring IAM (aka Kong Gateway) is how many routes should be created to reach all the business objects in an IRIS API.
A common mistake is to create one route per business object, unnecessarily multiplying the number of routes.
Let's take the example of the Supply Chain Orchestrator Data Model API:
/api/SC/scmodel/v1/objects /api/SC/scmodel/v1/objects/BOM /api/SC/scmodel/v1/objects/Carrier /api/SC/scmodel/v1/objects/Customer /api/SC/scmodel/v1/objects/DemandPlan /api/SC/scmodel/v1/objects/InventoryThreshold /api/SC/scmodel/v1/objects/Issue /api/SC/scmodel/v1/objects/LeadtimeVariant /api/SC/scmodel/v1/objects/Location /api/SC/scmodel/v1/objects/MfgOrder /api/SC/scmodel/v1/objects/Milestone /api/SC/scmodel/v1/objects/Product /api/SC/scmodel/v1/objects/ProductInventory /api/SC/scmodel/v1/objects/ProductSupplier /api/SC/scmodel/v1/objects/ProductionCapacity /api/SC/scmodel/v1/objects/PurchaseOrder /api/SC/scmodel/v1/objects/PurchaseOrderLine /api/SC/scmodel/v1/objects/RouteLeg /api/SC/scmodel/v1/objects/SCException /api/SC/scmodel/v1/objects/SLA /api/SC/scmodel/v1/objects/SalesOrder /api/SC/scmodel/v1/objects/SalesOrderLine /api/SC/scmodel/v1/objects/SalesShipment /api/SC/scmodel/v1/objects/SalesShipmentLine /api/SC/scmodel/v1/objects/ServiceSLA /api/SC/scmodel/v1/objects/ShipmentMilestone /api/SC/scmodel/v1/objects/ShipmentStop /api/SC/scmodel/v1/objects/ShipmentTracking /api/SC/scmodel/v1/objects/ShippingCost /api/SC/scmodel/v1/objects/Supplier /api/SC/scmodel/v1/objects/SupplyPlan /api/SC/scmodel/v1/objects/SupplyShipment /api/SC/scmodel/v1/objects/SupplyShipmentLine /api/SC/scmodel/v1/objects/TrackingService
Creating a route in API Manager for each business object would be tedious and strongly discouraged, and would not protect you from changes during a version upgrade.
Example of a clean cut (recommended)
| Route | Usage | Plugins |
|---|---|---|
/objects$ |
global list of all objects | Cache, rate limit |
/objects/{type} |
BOM / Carrier / Customer | Business Monitoring |
Kong doesn't natively understand /objects/{type}.
👉 It needs to be translated using a regex :
{type} = [^/]+
We start by creating a service scmodel in Kong
### Create a new service in Kong for the SC Model application
curl -i -X POST \
--url http://localhost:8001/services/ \
--data 'name=scmodel' \
--data 'url=http://192.168.65.1:52880'Then we add the route to retrieve the list of all objects with $ for the exact routes:
### Create a route for the SC Model service Objects
curl -i -X POST \
--url http://localhost:8001/services/scmodel/routes \
--data 'name=scmodel-objects' \
--data 'paths=~/api/SC/scmodel/v1/objects$' \
--data 'strip_path=false'Then we create a generic route for all object type using [^/]+$ as the regex :
### Create a route for the SC Model for all object types
curl -i -X POST \
http://localhost:8001/services/scmodel/routes \
--data name=scmodel-object-type \
--data 'paths[]=~/api/SC/scmodel/v1/objects/[^/]+$' \
--data strip_path=falseIf you want to monitor or manage one type of object in particular with different plugins or different auth, rate-limits, etc., you have to create a specific route for it, using regex_priority:
If multiple regex routes match, Kong chooses the highest regex_priority, otherwise… the internal (non-deterministic) order.
Example below for Customer and Product objects :
### Create a route for the SC Model service Customer
curl -i -X POST \
http://localhost:8001/services/scmodel/routes \
--data name=scmodel-object-customer \
--data 'paths[]=~/api/SC/scmodel/v1/objects/Customer$' \
--data 'regex_priority=10' \
--data strip_path=false
### Create a route for the SC Model service Product
curl -i -X POST \
http://localhost:8001/services/scmodel/routes \
--data name=scmodel-object-product \
--data 'paths[]=~/api/SC/scmodel/v1/objects/Product$' \
--data 'regex_priority=10' \
--data strip_path=falseYou can also create a limited list of objects types by using regex (A,B,C).
Example below for all sales routes :
### Create a route for the SC Model Sales routes
curl -i -X POST \
http://localhost:8001/services/scmodel/routes \
--data name=scmodel-object-sales \
--data 'paths[]=~/api/SC/scmodel/v1/objects/(SalesOrder|SalesOrderLine|SalesShipment|SalesShipmentLine)$' \
--data 'regex_priority=10' \
--data strip_path=false
You can then find the route configuration in the API Manager portal :
.png)
To test it, just make some calls to different routes :
### Get Object BOM
curl --user _SYSTEM:SYS 'http://localhost:8000/api/SC/scmodel/v1/objects/BOM'
### Get Object Carrier
curl --user _SYSTEM:SYS 'http://localhost:8000/api/SC/scmodel/v1/objects/Carrier'
### Get Object Customer
curl --user _SYSTEM:SYS 'http://localhost:8000/api/SC/scmodel/v1/objects/Customer'
### Get Object DemandPlan
curl --user _SYSTEM:SYS 'http://localhost:8000/api/SC/scmodel/v1/objects/DemandPlan'
### Get Object InventoryThreshold
curl --user _SYSTEM:SYS 'http://localhost:8000/api/SC/scmodel/v1/objects/InventoryThreshold'
### Get Object Issue
curl --user _SYSTEM:SYS 'http://localhost:8000/api/SC/scmodel/v1/objects/Issue'
### Get Object Product
curl --user _SYSTEM:SYS 'http://localhost:8000/api/SC/scmodel/v1/objects/Product'
### Get Object SalesOrder
curl --user _SYSTEM:SYS 'http://localhost:8000/api/SC/scmodel/v1/objects/SalesOrder'
### Get Object SalesOrderLine
curl --user _SYSTEM:SYS 'http://localhost:8000/api/SC/scmodel/v1/objects/SalesOrderLine'
### Get Object SalesShipment
curl --user _SYSTEM:SYS 'http://localhost:8000/api/SC/scmodel/v1/objects/SalesShipment'
### Get Object SalesShipmentLine
curl --user _SYSTEM:SYS 'http://localhost:8000/api/SC/scmodel/v1/objects/SalesShipmentLine'

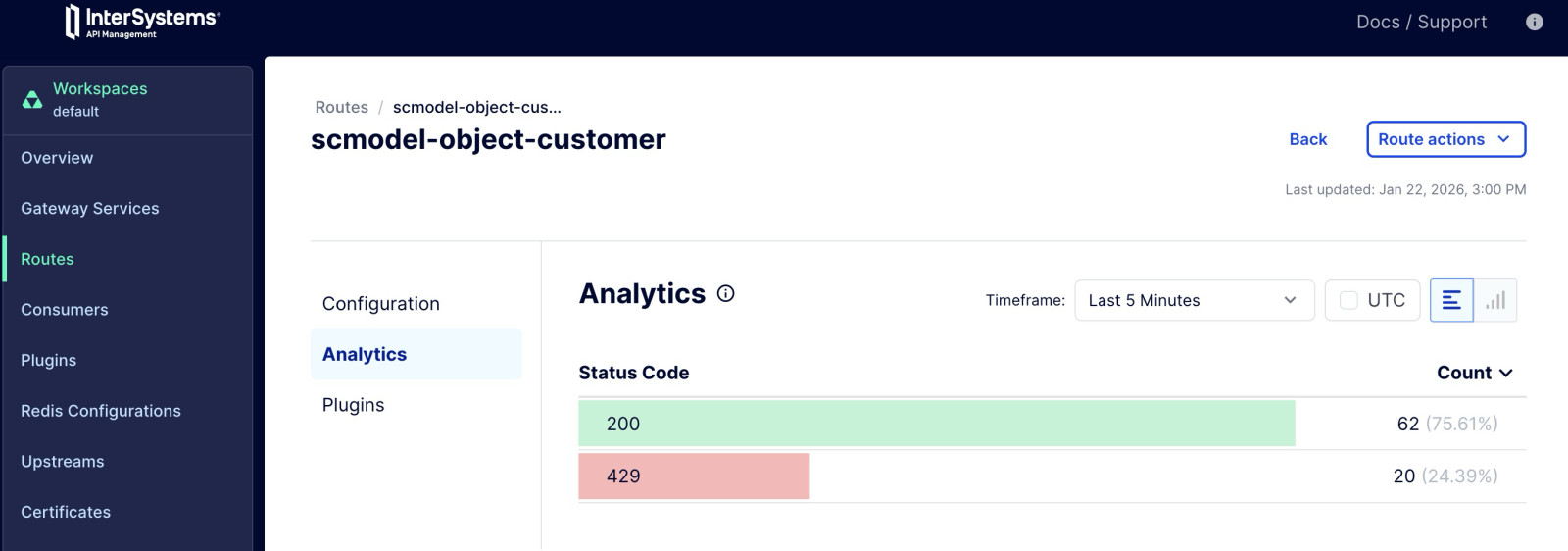

This allows you to manipulate your Customer business object with a finer level of detail than other objects types:
.png)
.png)
Analytics for all sales objects :
.png)
Analytics of the other object types :.png)
